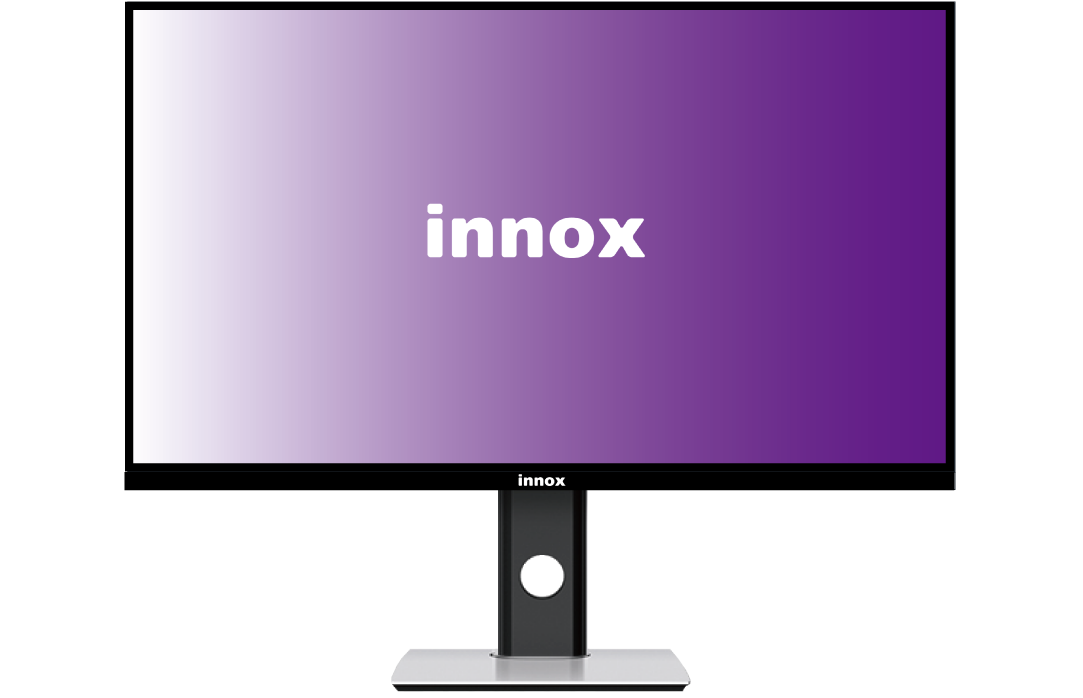

10.1" LED monitor 800 X600 resolutions |
Supports multi-signal inputs: VGA and HDMI |
Standard VESA mount 75 x 75 (mm) |
Model |
M-101 |
LCD Panel |
10.1" |
Active Area |
|
Pixel Pitch |
0.2715 (H) x 0.2715 (V)mm |
Resolution(H X V) |
800 X600 |
Luminance |
300cd/m |
Contrast Ratio |
1000:01:00 |
Aspect Ratio |
16:09 |
Number of Colors |
16.7M colors |
Viewing Angle |
170(H)/160(V) |
Response Time |
5.5ms(Typ) |
PC Input Formats |
640 * 480 @ 60、75Hz |
|
800 x 600 @ 60、72、75Hz |
Input Connectors |
VGA、HDMI、DC Jack、Audio |
OSD User Controls |
Color, Image Setting, Position, OSD Menu, Language, , Exit |
Power |
External AC Adapter、90-264VAC、50/60Hz、48W Max. |
Dimensions(W x H x D) |
577 x 356 x 48.3mm w/o stand |
|
577 x 407.74 x 198.33mm w/stand |
Weight |
KG(W/O stand)??? KGS(W/stand) |
Weight |
KG(W/O stand)??? KGS(W/stand) |
Temperature |
Operating: 0 to 50℃ |
